KPtracer - mouse tumor evolution

We next apply PhyloVelo to a CRISPR/Cas9-based lineage tracing dataset from a genetically-engineered mouse model (GEMM) of lung adenocarcinoma (Kras LSL-G12D/+;Trp53 fl/fl, or KP model) described by Yang et al. Cancer GEMMs allow one to study tumor evolutionary trajectory in its native microenvironment. Two primary tumors from KP mice (3726_NT_T1 and 3435_NT_T1) were selected because of their relatively high-resolution lineage trees and composition of diverse cell types (including AT2-like, AT1-like, Gastric-like, High plasticity, Lung-mixed, Endoderm-like, Early EMT-1, etc.)

import phylovelo as pv

/home/wangkun/miniconda3/lib/python3.9/site-packages/phylovelo/inference.py:8: TqdmExperimentalWarning: Using `tqdm.autonotebook.tqdm` in notebook mode. Use `tqdm.tqdm` instead to force console mode (e.g. in jupyter console)
  from tqdm.autonotebook import tqdm

import numpy as np
import pandas as pd
import scanpy as sc
from Bio import Phylo
from scipy.stats import pearsonr

import matplotlib.pyplot as plt
from matplotlib import font_manager
import matplotlib.patheffects as pe
from mpl_toolkits.axes_grid1.inset_locator import inset_axes

import data

# Data is available at https://github.com/mattjones315/KPTracer-release.git
tree = Phylo.read('/home/wangkun/datas/KPTracer-Data/trees/3726_NT_T1_tree.nwk', format='newick')
adata = sc.read_h5ad("/home/wangkun/datas/KPTracer-Data/expression/adata_processed.nt.h5ad")
sigscores = pd.read_csv("/home/wangkun/KPTracer-release/reproducibility/Figure6_S6/data/fitness_signature_scores.tsv", sep='\t', index_col = 0)

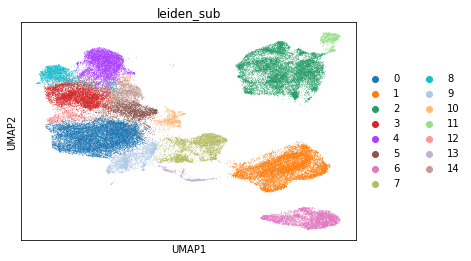

sc.pl.umap(adata, color='leiden_sub')

kii = np.intersect1d(sigscores.index, adata.obs_names)
adata.obs['FitnessSignature'] = np.nan
adata.obs.loc[kii, 'FitnessSignature'] = sigscores.loc[kii, 'FitnessSignature_NT']

xdr = pd.DataFrame(data=adata.obsm['X_umap'], index=adata.obs.index)
c = adata.obs['leiden_sub'].astype(int)

Filter cells

sel_cells = np.array([i.name for i in tree.get_terminals()])
sel_cells = sel_cells[np.isin(sel_cells, xdr.index)]
sel_xdr = xdr.loc[sel_cells]
cond = sel_xdr.iloc[:,0]<2
cond = cond & ~((sel_xdr.iloc[:,1]<3)&(sel_xdr.iloc[:,0]<-5.5))
cond = cond & ~((sel_xdr.iloc[:,1]<-5)&(sel_xdr.iloc[:,0]<1)&(sel_xdr.iloc[:,0]>-2))
sel_cells = sel_cells[cond]
sel_xdr = xdr.loc[sel_cells]
# plt.scatter(xdr.iloc[:,0], xdr.iloc[:,1], s=1)
fig, ax = plt.subplots(figsize=(6,6))
ax.scatter(sel_xdr.iloc[:,0], sel_xdr.iloc[:,1], c=c[sel_cells].apply(lambda x: adata.uns['leiden_colors'][x]), s=5)

<matplotlib.collections.PathCollection at 0x7f3e70a39df0>

Read data using scData

sel_data = adata[sel_cells]
sc.pp.filter_genes(sel_data, min_counts=10)
sd = pv.scData(x_normed=sel_data.to_df(), phylo_tree=tree)
depths = [len(tree.get_path(sd.phylo_tree.find_any(name=i))) for i in sd.x_normed.index]
sd.Xdr = xdr.loc[sd.x_normed.index]

Trying to set attribute `.var` of view, copying.

Inference and project velocity into embedding

pv.velocity_inference(sd, depths, cutoff=0.97, target='x_normed')
pv.velocity_embedding(sd, target='x_normed')

/home/wangkun/miniconda3/lib/python3.9/site-packages/scipy/optimize/_numdiff.py:557: RuntimeWarning: invalid value encountered in subtract
  df = fun(x) - f0
/home/wangkun/miniconda3/lib/python3.9/site-packages/phylovelo/inference.py:135: RuntimeWarning: invalid value encountered in double_scalars
  lr = 2 * (lh1 - lh0)

fig, ax = plt.subplots()
ax.scatter(sel_xdr.iloc[:,0], sel_xdr.iloc[:,1],
           c=c[sel_cells].apply(lambda x: adata.uns['leiden_sub_colors'][x]),
           s=100, alpha=0.3)

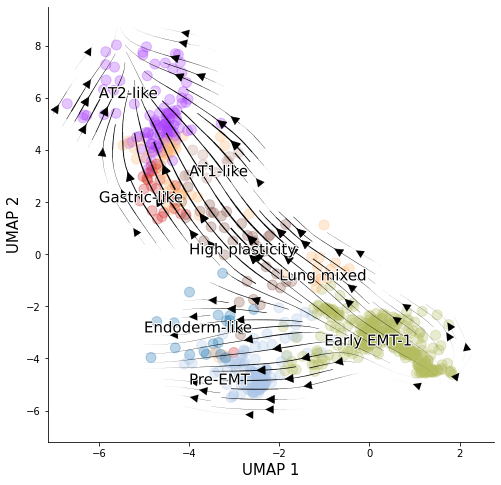

ax = pv.velocity_plot(sd.Xdr.to_numpy(), sd.velocity_embeded, ax, 'stream', radius=0.8, lw_coef=1500, arrowsize=2)
ax.figure.set_size_inches(8,8)
ax.set_xlabel('UMAP 1', fontsize=15)
ax.set_ylabel('UMAP 2', fontsize=15)
ax.spines['right'].set_visible(False)
ax.spines['top'].set_visible(False)
ax.text(-1, -3.5, 'Early EMT-1', fontsize=15,c='black',
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
ax.text(-4, -5, 'Pre-EMT', fontsize=15,c='black',
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
ax.text(-5, -3, 'Endoderm-like', fontsize=15,c='black',
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
ax.text(-4, 0, 'High plasticity', fontsize=15,c='black',
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
ax.text(-2, -1, 'Lung mixed', fontsize=15,c='black',
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
ax.text(-6, 2, 'Gastric-like', fontsize=15,c='black',
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
ax.text(-4, 3, 'AT1-like', fontsize=15,c='black',
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
ax.text(-6, 6, 'AT2-like', fontsize=15,c='black',
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])

Text(-6, 6, 'AT2-like')

Inference PhyloVelo pseudotime

pv.calc_phylo_pseudotime(sd, n_neighbors=100, r_sample=0.8)

fig, ax = plt.subplots(figsize=(8,8))

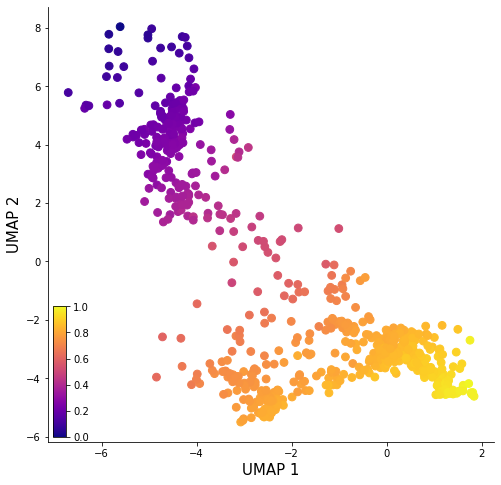

scatter = ax.scatter(sd.Xdr.iloc[:,0],sd.Xdr.iloc[:,1], c=sd.phylo_pseudotime,cmap='plasma', s=60)
ax.set_xlabel('UMAP 1', fontsize=15)
ax.set_ylabel('UMAP 2', fontsize=15)
cbaxes = inset_axes(ax, width="3%", height="30%", loc='lower left')
plt.colorbar(scatter, cax=cbaxes, orientation='vertical')
ax.spines['right'].set_visible(False)
ax.spines['top'].set_visible(False)

x = adata.obs['FitnessSignature'][sd.Xdr.index][~np.isnan(adata.obs['FitnessSignature'][sd.Xdr.index])]
y = sd.phylo_pseudotime[~np.isnan(adata.obs['FitnessSignature'][sd.Xdr.index])]

a, b = np.polyfit(x, y, deg=1)
y_est = a * np.linspace(-0.2,0.7,60) + b

fig, ax = plt.subplots(figsize=(8, 8))
ax.scatter(x, y, alpha=0.4, s=70)
ax.plot(np.linspace(-0.2,0.7,60), y_est, '-', c='k')
ax.set_xlabel('Fitness signature', fontsize=17)
ax.set_ylabel('PhyloVelo pseudotime', fontsize=17)
# ax.text(50, 0.9, 'spearmanr={:.2g}\np_val={:.2g}'.format(*spearmanr(x, y)), fontsize=15)

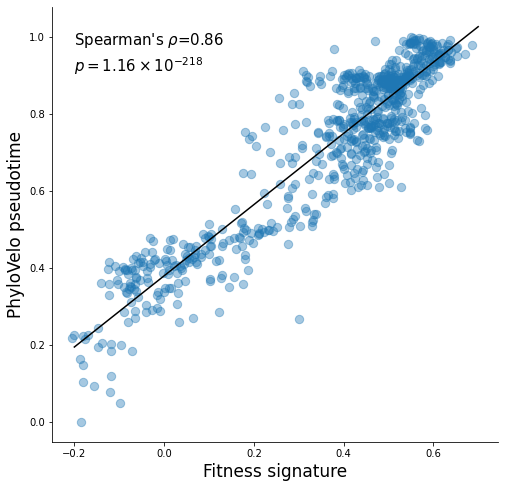

rho, pval = spearmanr(x, y)
ax.text(-0.2, 0.98, r"Spearman's $\rho$={:.2g}".format(rho), fontsize=15)
ax.text(-0.2, 0.91, r'$p={}\times 10^{}$'.format(*r'{:.2e}'.format(pval).split('e')).replace('^', '^{').replace('$', '}$')[1:], fontsize=15)
# ax.set_ylim(-0.05,0.7)
ax.spines['right'].set_visible(False)
ax.spines['top'].set_visible(False)

Show gene expression heatmap

from sklearn.preprocessing import scale
import seaborn as sns

gene_vel_map = pd.DataFrame(data=sd.velocity, index=sd.x_normed.columns)

genes1 = gene_vel_map.index[gene_vel_map[0]>0]
genes2 = gene_vel_map.index[gene_vel_map[0]<0]

genes1 = genes1[np.argsort(scale(sd.x_normed[genes1], axis=0).sum(0))]
genes2 = genes2[np.argsort(scale(sd.x_normed[genes2], axis=0).sum(0))]
genes1 = genes1[::-1]


genetraj1 = []
for i in genes1:
    genetraj1.append(scale(list(sd.x_normed[i][np.argsort(sd.phylo_pseudotime)])))
genetraj1 = np.array(genetraj1)

genetraj2 = []
for i in genes2:
    genetraj2.append(scale(list(sd.x_normed[i][np.argsort(sd.phylo_pseudotime)])))
genetraj2 = np.array(genetraj2)

/home/wangkun/miniconda3/lib/python3.9/site-packages/sklearn/preprocessing/_data.py:235: UserWarning: Numerical issues were encountered when centering the data and might not be solved. Dataset may contain too large values. You may need to prescale your features.
  warnings.warn(
/home/wangkun/miniconda3/lib/python3.9/site-packages/sklearn/preprocessing/_data.py:254: UserWarning: Numerical issues were encountered when scaling the data and might not be solved. The standard deviation of the data is probably very close to 0.
  warnings.warn(
/home/wangkun/miniconda3/lib/python3.9/site-packages/sklearn/preprocessing/_data.py:235: UserWarning: Numerical issues were encountered when centering the data and might not be solved. Dataset may contain too large values. You may need to prescale your features.
  warnings.warn(
/home/wangkun/miniconda3/lib/python3.9/site-packages/sklearn/preprocessing/_data.py:254: UserWarning: Numerical issues were encountered when scaling the data and might not be solved. The standard deviation of the data is probably very close to 0.
  warnings.warn(

fig = plt.figure(figsize=(6, 6))
h1 = len(genes1)/(len(genes1)+len(genes2))
h2 = len(genes2)/(len(genes1)+len(genes2))
ax1 = plt.axes([0.05, 0, 0.8, 0.95*h1])
ax2 = plt.axes([0.05, 0.95*h1+0.05, 0.8, 0.95*h2])
ax3 = plt.axes([0.9,0.025,0.03,0.95])

ax1 = sns.heatmap(genetraj1, cmap='viridis', ax=ax1, cbar_ax=ax3,vmax=1.5, vmin=-1.5, xticklabels=False, yticklabels='')
ax2 = sns.heatmap(genetraj2[::-1], cmap='viridis', ax=ax2, cbar=False,vmax=1.5, vmin=-1.5, xticklabels=False, yticklabels='')

Transfer phylogenetic velocity to more data

sel_cells = adata.obs['Cluster-Name'][np.isin(adata.obs['Cluster-Name'],
                                              ['AT1-like', 'AT2-like', 'Early gastric','Gastric-like','Late Gastric',
                                               'High plasticity','Lung progenitor-like','Endoderm-like','Early EMT-1', 'Pre-EMT'])].index

sd_early.count = adata.count.loc[sel_cells]
sd_early.x_normed = sd_early.x_normed.loc[sel_cells]
sd_early.Xdr = sd_early.Xdr.loc[sel_cells]

sd_early = pv.velocity_embedding(sd_early, target='x_normed', n_neigh=300)

fig, ax = plt.subplots()
ax.scatter(sd_early.Xdr.iloc[:,0], sd_early.Xdr.iloc[:,1],
           c=c[sd_early.Xdr.index].apply(lambda x: adata.uns['leiden_sub_colors'][x]),
           s=1, alpha=0.3)
ax = pv.velocity_plot(sd_early.Xdr.to_numpy(), sd_early.velocity_embeded, ax, 'stream', radius=0.5, lw_coef=16000, streamdensity=1.5, arrowsize=2)
ax.figure.set_size_inches(8,8)
ax.set_xlabel('UMAP 1', fontsize=15)
ax.set_ylabel('UMAP 2', fontsize=15)
# cbaxes = inset_axes(ax, width="3%", height="30%", loc='lower right')
# plt.colorbar(scatter, cax=cbaxes, orientation='vertical')
ax.spines['right'].set_visible(False)
ax.spines['top'].set_visible(False)
ax.set_ylim(-6.3, 10)
ax.set_xlim(-10, 5)

pv.label_name(sd_early.Xdr, adata[sel_cells].obs['Cluster-Name'], ax)

sd_all = pv.scData(count=pd.DataFrame(data=adata.X.A, index=adata.obs_names, columns=adata.var_names), Xdr=pd.DataFrame(data=adata.obsm['X_umap'], index=adata.obs_names))

sd_all.count = sd_all.count[sd.x_normed.columns]
sd_all.x_normed = sd_all.count
sd_all.velocity = sd.velocity

sd_all = pv.velocity_embedding(sd_all, target='x_normed', n_neigh=300)

fig, ax = plt.subplots()
ax.scatter(adata.obsm['X_umap'][:,0], adata.obsm['X_umap'][:,1],
           c=[adata.uns['leiden_sub_colors'][x] for x in c[adata.obs_names]],
           s=1, alpha=0.3)
ax = pv.velocity_plot(sd_all.Xdr.to_numpy(), sd_all.velocity_embeded, ax, 'stream', radius=0.5, lw_coef=16000, streamdensity=1.5, arrowsize=2)
ax.figure.set_size_inches(8,8)
ax.set_xlabel('UMAP 1', fontsize=15)
ax.set_ylabel('UMAP 2', fontsize=15)
ax.spines['right'].set_visible(False)
ax.spines['top'].set_visible(False)

pv.label_name(sd_all.Xdr, adata.obs['Cluster-Name'], ax)

Text(5, -11, 'Mesenchymal-2 (Met)')
