KP 3726

Comparison with deep learning RNA velocity framework (DeepVelo: https://github.com/bowang-lab/DeepVelo, UniTVelo: https://github.com/StatBiomed/UniTVelo and VeloVAE: https://github.com/welch-lab/VeloVAE)

[1]:

import anndata
import numpy as np
import scvelo as scv
import scanpy as sc
import torch
import os.path
import pandas as pd
from Bio import Phylo

[2]:

adata = scv.read("/data/liangzhen/wangk_DianYang_tumor/RNA_velocity/KPTracer_KP_TRCR_scRNA_6/velocyto/KPTracer_KP_TRCR_scRNA_6.loom",cache=True)
adata.obs_names = ['L6.'+i[25:] for i in adata.obs_names]

wangk_cells_df = pd.read_csv("/data/liangzhen/wangk_DianYang_tumor/data_for_modulescore/cellname_3726.txt",header=None)

adata_paper = scv.read("/data/wangkun/KPTracer-Data/expression/adata_processed.nt.h5ad")
xdr = pd.DataFrame(data=adata_paper.obsm['X_umap'], index=adata_paper.obs.index)
sc.pl.umap(adata_paper, color='leiden_sub')

tree = Phylo.read('/data/wangkun/KPTracer-Data/trees/3726_NT_T1_tree.nwk', format='newick')
sel_cells = np.array([i.name for i in tree.get_terminals()])
sel_cells = sel_cells[np.isin(sel_cells, xdr.index)]
sel_xdr = xdr.loc[sel_cells]

cond = sel_xdr.iloc[:,0]<2
cond = cond & ~((sel_xdr.iloc[:,1]<3)&(sel_xdr.iloc[:,0]<-5.5))
cond = cond & ~((sel_xdr.iloc[:,1]<-5)&(sel_xdr.iloc[:,0]<1)&(sel_xdr.iloc[:,0]>-2))

wangk_cells = cond.index[cond]

adata_paper_select = adata_paper[cond.index[cond],]

wangk_cells = [cell.replace("-1","x") for cell in wangk_cells]
wangk_cells = [cell.replace("L30.","KPTracer_scRNA_L30:") for cell in wangk_cells]

adata_select = adata[wangk_cells,]

adata_select.obsm['X_umap'] = adata_paper_select.obsm['X_umap']
adata_select.obs["leiden_sub"] = adata_paper_select.obs["leiden_sub"].to_list()

scv.pp.filter_and_normalize(adata_select,min_shared_counts=20, n_top_genes=2000)
scv.pp.moments(adata_select,n_pcs=30, n_neighbors=30)

Variable names are not unique. To make them unique, call `.var_names_make_unique`.

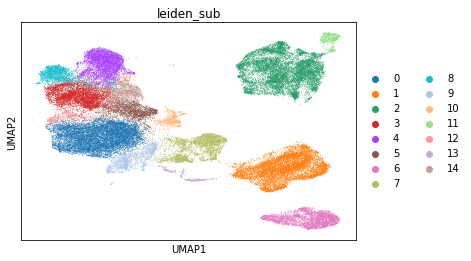

../_images/notebook_kp3726_comparison_3_1.png

Variable names are not unique. To make them unique, call `.var_names_make_unique`.
Variable names are not unique. To make them unique, call `.var_names_make_unique`.
Variable names are not unique. To make them unique, call `.var_names_make_unique`.
Variable names are not unique. To make them unique, call `.var_names_make_unique`.
Variable names are not unique. To make them unique, call `.var_names_make_unique`.
Variable names are not unique. To make them unique, call `.var_names_make_unique`.

Filtered out 25368 genes that are detected 20 counts (shared).
Normalized count data: X, spliced, unspliced.
Extracted 2000 highly variable genes.
Logarithmized X.
computing neighbors

2022-10-29 15:02:57.081900: I tensorflow/core/platform/cpu_feature_guard.cc:193] This TensorFlow binary is optimized with oneAPI Deep Neural Network Library (oneDNN) to use the following CPU instructions in performance-critical operations:  AVX2 AVX512F AVX512_VNNI FMA
To enable them in other operations, rebuild TensorFlow with the appropriate compiler flags.
2022-10-29 15:02:57.234333: I tensorflow/core/util/util.cc:169] oneDNN custom operations are on. You may see slightly different numerical results due to floating-point round-off errors from different computation orders. To turn them off, set the environment variable `TF_ENABLE_ONEDNN_OPTS=0`.
2022-10-29 15:02:57.240422: W tensorflow/stream_executor/platform/default/dso_loader.cc:64] Could not load dynamic library 'libcudart.so.11.0'; dlerror: libcudart.so.11.0: cannot open shared object file: No such file or directory; LD_LIBRARY_PATH: /usr/local/torque/lib
2022-10-29 15:02:57.240438: I tensorflow/stream_executor/cuda/cudart_stub.cc:29] Ignore above cudart dlerror if you do not have a GPU set up on your machine.
2022-10-29 15:02:57.266916: E tensorflow/stream_executor/cuda/cuda_blas.cc:2981] Unable to register cuBLAS factory: Attempting to register factory for plugin cuBLAS when one has already been registered
2022-10-29 15:02:58.444390: W tensorflow/stream_executor/platform/default/dso_loader.cc:64] Could not load dynamic library 'libnvinfer.so.7'; dlerror: libnvinfer.so.7: cannot open shared object file: No such file or directory; LD_LIBRARY_PATH: /usr/local/torque/lib
2022-10-29 15:02:58.444486: W tensorflow/stream_executor/platform/default/dso_loader.cc:64] Could not load dynamic library 'libnvinfer_plugin.so.7'; dlerror: libnvinfer_plugin.so.7: cannot open shared object file: No such file or directory; LD_LIBRARY_PATH: /usr/local/torque/lib
2022-10-29 15:02:58.444496: W tensorflow/compiler/tf2tensorrt/utils/py_utils.cc:38] TF-TRT Warning: Cannot dlopen some TensorRT libraries. If you would like to use Nvidia GPU with TensorRT, please make sure the missing libraries mentioned above are installed properly.

    finished (0:00:08) --> added
    'distances' and 'connectivities', weighted adjacency matrices (adata.obsp)
computing moments based on connectivities
    finished (0:00:00) --> added
    'Ms' and 'Mu', moments of un/spliced abundances (adata.layers)

scVelo - dynamical

[3]:

adata_scv = adata_select.copy()

scv.tl.recover_dynamics(adata_scv)
scv.tl.velocity(adata_scv,mode="dynamical")
scv.tl.velocity_graph(adata_scv)
scv.tl.velocity_pseudotime(adata_scv)
scv.pl.velocity_embedding_stream(adata_scv, basis='X_umap',color="leiden_sub",figsize=[6,6],s=380,alpha=1,density=1.5,arrow_size=1.5,smooth=1)

recovering dynamics (using 1/64 cores)

    finished (0:02:15) --> added
    'fit_pars', fitted parameters for splicing dynamics (adata.var)
computing velocities
    finished (0:00:00) --> added
    'velocity', velocity vectors for each individual cell (adata.layers)
computing velocity graph (using 1/64 cores)

    finished (0:00:00) --> added
    'velocity_graph', sparse matrix with cosine correlations (adata.uns)
computing terminal states
WARNING: Uncertain or fuzzy root cell identification. Please verify.
    identified 1 region of root cells and 1 region of end points .
    finished (0:00:00) --> added
    'root_cells', root cells of Markov diffusion process (adata.obs)
    'end_points', end points of Markov diffusion process (adata.obs)
computing velocity embedding
    finished (0:00:00) --> added
    'velocity_umap', embedded velocity vectors (adata.obsm)

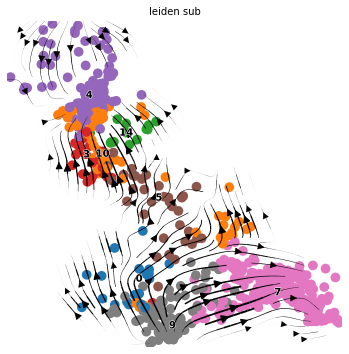

../_images/notebook_kp3726_comparison_5_5.png

[4]:

scv.tl.latent_time(adata_scv)

computing latent time using root_cells as prior
    finished (0:00:00) --> added
    'latent_time', shared time (adata.obs)

[5]:

scv.pl.scatter(adata_scv, color='latent_time', color_map='gnuplot',figsize=[6,6],s=380,alpha=1,legend_loc='None')

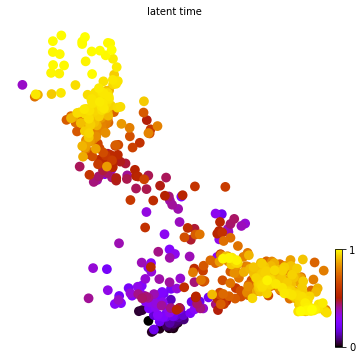

../_images/notebook_kp3726_comparison_7_0.png

[ ]:

deepvelo

[6]:

from deepvelo.utils import velocity, velocity_confidence, update_dict
from deepvelo.utils.preprocess import autoset_coeff_s
from deepvelo.utils.plot import statplot, compare_plot
from deepvelo import train, Constants
from deepvelo.utils.temporal import latent_time

[7]:

adata_dv = adata_select.copy()

[8]:

# specific configs to overide the default configs
configs = {
    "name": "DeepVelo", # name of the experiment
    "loss": {"args": {"coeff_s": autoset_coeff_s(adata_dv)}},
    "trainer": {"verbosity": 0}, # increase verbosity to show training progress
}
configs = update_dict(Constants.default_configs, configs)
configs['n_gpu']=0

The ratio of spliced reads is 76.8% (between 70% and 85%). Suggest using coeff_s 0.75.

[9]:

velocity(adata_dv, mask_zero=False)
trainer = train(adata_dv, configs)

computing velocities
    finished (0:00:00) --> added
    'velocity', velocity vectors for each individual cell (adata.layers)
Warning: logging configuration file is not found in logger/logger_config.json.

INFO:train:Beginning training of DeepVelo ...

building graph
velo data shape: torch.Size([754, 2000])
velo_mat shape: (754, 2000)
--> added 'velocity' (adata.layers)
--> added 'velocity_unspliced' (adata.layers)
--> added 'cell_specific_beta' (adata.layers)
--> added 'cell_specific_gamma' (adata.layers)

[10]:

scv.tl.velocity_graph(adata_dv, n_jobs=8)

computing velocity graph (using 8/64 cores)

    finished (0:00:06) --> added
    'velocity_graph', sparse matrix with cosine correlations (adata.uns)

[11]:

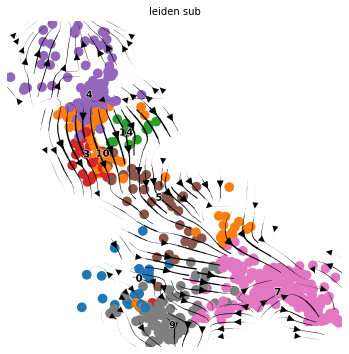

scv.pl.velocity_embedding_stream(adata_dv, basis='X_umap',color="leiden_sub",figsize=[6,6],s=380,alpha=1,density=1.5,arrow_size=1.5,smooth=1)

computing velocity embedding
    finished (0:00:00) --> added
    'velocity_umap', embedded velocity vectors (adata.obsm)

../_images/notebook_kp3726_comparison_15_1.png

[12]:

latent_time(adata_dv)

computing terminal states
    identified 0 region of root cells and 1 region of end points .
    finished (0:00:00) --> added
    'root_cells', root cells of Markov diffusion process (adata.obs)
    'end_points', end points of Markov diffusion process (adata.obs)
WARNING: No root cells detected. Consider specifying root cells to improve latent time prediction.
computing latent time using root_cells as prior
    finished (0:00:00) --> added
    'latent_time', shared time (adata.obs)

[13]:

scv.pl.scatter(adata_dv, color='latent_time', color_map='gnuplot',figsize=[6,6],s=380,alpha=1,legend_loc='None')

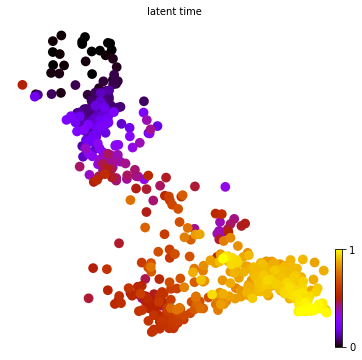

../_images/notebook_kp3726_comparison_17_0.png

[ ]:

UnitVelo

[14]:

import unitvelo as utv

(Running UniTVelo 0.2.4.3)
2022-10-29 07:05:39

[15]:

adata_utv = adata_select.copy()

[16]:

velo_config = utv.config.Configuration()
velo_config.R2_ADJUST = True
velo_config.IROOT = None
velo_config.FIT_OPTION = '1'
velo_config.AGENES_R2 = 1

[17]:

adata = utv.run_model(adata_utv, 'leiden_sub', config_file=velo_config)

-------> Manully Specified Parameter <-------
None


-------> Model Configuration Settings <------
N_TOP_GENES:    2000
LEARNING_RATE:  0.01
FIT_OPTION:     1
DENSITY:        SVD
REORDER_CELL:   Soft_Reorder
AGGREGATE_T:    True
R2_ADJUST:      True
GENE_PRIOR:     None
VGENES: basic
IROOT:  None


Current working dir is /home/wangkun
Results will be stored in res folder

2022-10-29 15:05:39.678619: W tensorflow/stream_executor/platform/default/dso_loader.cc:64] Could not load dynamic library 'libcuda.so.1'; dlerror: libcuda.so.1: cannot open shared object file: No such file or directory; LD_LIBRARY_PATH: /usr/local/torque/lib
2022-10-29 15:05:39.678677: W tensorflow/stream_executor/cuda/cuda_driver.cc:263] failed call to cuInit: UNKNOWN ERROR (303)
2022-10-29 15:05:39.678719: I tensorflow/stream_executor/cuda/cuda_diagnostics.cc:156] kernel driver does not appear to be running on this host (node1): /proc/driver/nvidia/version does not exist
2022-10-29 15:05:39.679393: I tensorflow/core/platform/cpu_feature_guard.cc:193] This TensorFlow binary is optimized with oneAPI Deep Neural Network Library (oneDNN) to use the following CPU instructions in performance-critical operations:  AVX2 AVX512F AVX512_VNNI FMA
To enable them in other operations, rebuild TensorFlow with the appropriate compiler flags.

---> # of velocity genes used 1192
---> # of velocity genes used 1040
---> # of velocity genes used 1037

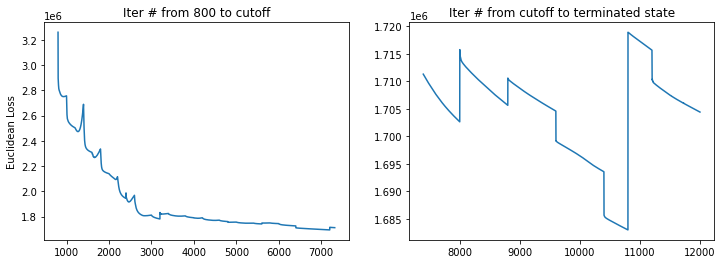

1,704,411: 100%|█████████████████████████▉| 11998/12000 [07:58<00:00, 23.11it/s]

../_images/notebook_kp3726_comparison_23_4.png

1,704,411: 100%|█████████████████████████▉| 11999/12000 [08:09<00:00, 24.51it/s]

Total loss 1682989, vgene loss 1704411

[18]:

scv.pl.velocity_embedding_stream(adata_utv, color='leiden_sub', basis='X_umap',figsize=[6,6],s=255,alpha=1,density=1,arrow_size=1.5,smooth=1)

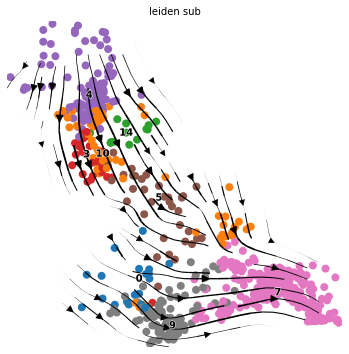

../_images/notebook_kp3726_comparison_24_0.png

[19]:

scv.tl.latent_time(adata_utv,min_likelihood=None)
scv.pl.scatter(adata_utv, color='latent_time', color_map='gnuplot',figsize=[6,6],s=380,alpha=1,legend_loc='None')

../_images/notebook_kp3726_comparison_25_0.png

[ ]:

VeloVAE

[20]:

import sys
sys.path.append('/home/wangkun/VeloVAE-master/')
import velovae as vv

[21]:

adata_vv = adata_select.copy()

[22]:

torch.manual_seed(2022)
np.random.seed(2022)
full_vb = vv.VAEFullVB(adata_vv, tmax=20, dim_z=5)

Initialization using the steady-state and dynamical models.
Gaussian Prior.

[23]:

full_vb.train(adata_vv, plot=True, figure_path='/home/wangkun/fullvb/kp3726', embed="umap")

--------------------------- Train a VeloVAE ---------------------------
*********        Creating Training/Validation Datasets        *********
*********                      Finished.                      *********
*********                 Creating optimizers                 *********
*********                      Finished.                      *********
*********                    Start training                   *********
*********                      Stage  1                       *********
Total Number of Iterations Per Epoch: 5, test iteration: 8
Epoch 1: Train ELBO = -102666.477, Test ELBO = -705217.375,      Total Time =   0 h :  0 m :  0 s
Epoch 100: Train ELBO = -5215.188, Test ELBO = -5655.866,        Total Time =   0 h :  0 m : 20 s
Epoch 200: Train ELBO = -3610.744, Test ELBO = -3941.016,        Total Time =   0 h :  0 m : 40 s
Epoch 300: Train ELBO = -2449.842, Test ELBO = -2814.940,        Total Time =   0 h :  1 m :  0 s
*********       Stage 1: Early Stop Triggered at epoch 308.       *********
*********                      Stage  2                       *********
Cell-wise KNN Estimation.
Percentage of Invalid Sets: 0.147
Average Set Size: 29
Finished. Actual Time:   0 h :  0 m :  0 s
Epoch 309: Train ELBO = -1759.281, Test ELBO = -2148.402,        Total Time =   0 h :  1 m :  2 s
Epoch 400: Train ELBO = -1492.844, Test ELBO = -1875.515,        Total Time =   0 h :  1 m : 22 s
Epoch 500: Train ELBO = -1482.987, Test ELBO = -1836.995,        Total Time =   0 h :  1 m : 43 s
*********       Stage 2: Early Stop Triggered at epoch 552.       *********
*********              Finished. Total Time =   0 h :  1 m : 54 s             *********

[24]:

full_vb.save_anndata(adata_vv, 'fullvb',file_path='/home/wangkun/VeloVAE-master/', file_name="kp3726_out.h5ad")

... storing 'leiden_sub' as categorical

[25]:

key = 'fullvb'
scv.tl.velocity_graph(adata_vv, vkey=f'{key}_velocity')
scv.tl.velocity_embedding(adata_vv, vkey=f'{key}_velocity')

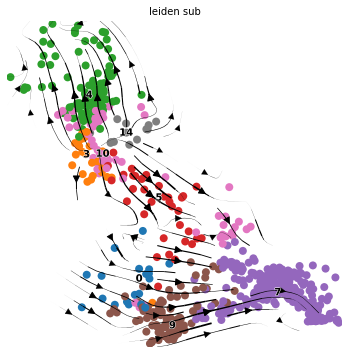

scv.pl.velocity_embedding_stream(adata_vv, vkey=f'{key}_velocity', color='leiden_sub', basis='X_umap',figsize=[6,6],s=255,alpha=1,density=1,arrow_size=1.5,smooth=1)

../_images/notebook_kp3726_comparison_33_1.png

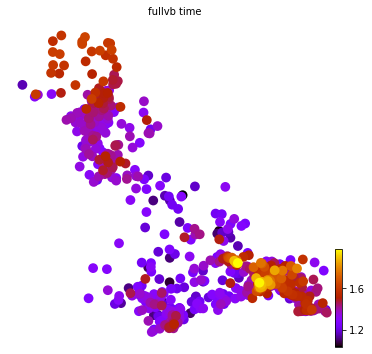

[26]:

scv.pl.scatter(adata_vv, color='fullvb_time', color_map='gnuplot',figsize=[6,6],s=380,alpha=1,legend_loc='None')

../_images/notebook_kp3726_comparison_34_0.png

[ ]:

[27]:

import phylovelo as pv
import matplotlib.pyplot as plt
from mpl_toolkits.axes_grid1.inset_locator import inset_axes

def norm_time(x):
    x -= min(x)
    return x/max(x)

from matplotlib import font_manager
import matplotlib.patheffects as pe
c = adata_paper.obs['leiden_sub'].astype(int)
c.index = [i.replace('-1', 'x') for i in c.index]

[29]:

[ ]:

[35]:

name = 'kp3726_scvelo'
fig, ax = plt.subplots()
ax.scatter(adata.obsm['X_umap'][:,0], adata.obsm['X_umap'][:,1],
           c=c[adata.obs_names].apply(lambda x: adata_paper.uns['leiden_sub_colors'][x]),
           s=100, alpha=0.3)
ax = pv.ana_utils.velocity_plot(adata.obsm['X_umap'], adata_scv.obsm['velocity_umap'], ax, 'stream', radius=0.8, lw_coef=100, arrowsize=2)
ax.figure.set_size_inches(8,8)
ax.set_xlabel('UMAP 1', fontsize=15)
ax.set_ylabel('UMAP 2', fontsize=15)
# cbaxes = inset_axes(ax, width="3%", height="30%", loc='lower right')
# plt.colorbar(scatter, cax=cbaxes, orientation='vertical')
ax.spines['right'].set_visible(False)
ax.spines['top'].set_visible(False)
ax.text(-1, -3.5, 'Early EMT-1', fontsize=15,c='black',
       fontproperties=font_manager.FontProperties(fname='/data/public/font/arial/ARIALBD.TTF'),
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
ax.text(-4, -5, 'Pre-EMT', fontsize=15,c='black',
       fontproperties=font_manager.FontProperties(fname='/data/public/font/arial/ARIALBD.TTF'),
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
ax.text(-5, -3, 'Endoderm-like', fontsize=15,c='black',
       fontproperties=font_manager.FontProperties(fname='/data/public/font/arial/ARIALBD.TTF'),
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
ax.text(-4, 0, 'High plasticity', fontsize=15,c='black',
       fontproperties=font_manager.FontProperties(fname='/data/public/font/arial/ARIALBD.TTF'),
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
ax.text(-2, -1, 'Lung mixed', fontsize=15,c='black',
       fontproperties=font_manager.FontProperties(fname='/data/public/font/arial/ARIALBD.TTF'),
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
ax.text(-6, 2, 'Gastric-like', fontsize=15,c='black',
       fontproperties=font_manager.FontProperties(fname='/data/public/font/arial/ARIALBD.TTF'),
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
ax.text(-4, 3, 'AT1-like', fontsize=15,c='black',
       fontproperties=font_manager.FontProperties(fname='/data/public/font/arial/ARIALBD.TTF'),
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
ax.text(-6, 6, 'AT2-like', fontsize=15,c='black',
       fontproperties=font_manager.FontProperties(fname='/data/public/font/arial/ARIALBD.TTF'),
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
plt.savefig('/home/wangkun/modelcomp_figs/'+name+'.png', format='png')


fig, ax = plt.subplots()
scatter=ax.scatter(adata.obsm['X_umap'][:,0], adata.obsm['X_umap'][:,1],
           c=norm_time(adata_scv.obs['latent_time']), cmap='plasma',
           s=60)
ax.figure.set_size_inches(8,8)
ax.set_xlabel('UMAP 1', fontsize=15)
ax.set_ylabel('UMAP 2', fontsize=15)
# cbaxes = inset_axes(ax, width="3%", height="30%", loc='lower right')
# plt.colorbar(scatter, cax=cbaxes, orientation='vertical')
ax.spines['right'].set_visible(False)
ax.spines['top'].set_visible(False)
cbaxes = inset_axes(ax, width="3%", height="30%", loc='lower left')
plt.colorbar(scatter, cax=cbaxes, orientation='vertical')
ax.spines['right'].set_visible(False)
ax.spines['top'].set_visible(False)
# ax.set_ylim(-1.43,9)

plt.savefig('/home/wangkun/modelcomp_figs/'+name+'_lt.png', format='png')


from scipy.stats import spearmanr
sigscores = pd.read_csv("/data/liangzhen/wangk_DianYang_tumor/data_for_modulescore/fitness_signature_scores.tsv", sep='\t', index_col = 0)
kii = np.intersect1d(sigscores.index, adata_paper.obs_names)
adata_paper.obs['FitnessSignature'] = np.nan
adata_paper.obs.loc[kii, 'FitnessSignature'] = sigscores.loc[kii, 'FitnessSignature_NT']


x =adata_paper.obs['FitnessSignature'][[i.replace('x', '-1') for i in adata.obs_names]]
y = norm_time(np.array(adata_scv.obs['latent_time']))
x[np.isnan(x)] = np.mean(x[~np.isnan(x)])

a, b = np.polyfit(x, y, deg=1)
y_est = a * np.linspace(-0.2,0.7,60) + b

fig, ax = plt.subplots(figsize=(8, 8))
ax.scatter(x, y, alpha=0.4, s=70)
ax.plot(np.linspace(-0.2,0.7,60), y_est, '-', c='k')
ax.set_xlabel('Fitness signature', fontsize=17)
ax.set_ylabel('Latent time', fontsize=17)
# ax.text(50, 0.9, 'spearmanr={:.2g}\np_val={:.2g}'.format(*spearmanr(x, y)), fontsize=15)
rho, pval = spearmanr(x, y)
ax.text(-0.2, 0.1, r"Spearman's $\rho$={:.2g}".format(rho), fontsize=15)
ax.text(-0.2, 0.0, r'$p={}\times 10^{}$'.format(*r'{:.2e}'.format(pval).split('e')).replace('^', '^{').replace('$', '}$')[1:], fontsize=15)

ax.spines['right'].set_visible(False)
ax.spines['top'].set_visible(False)

plt.savefig('/home/wangkun/modelcomp_figs/'+name+'_cmp.png', format='png')

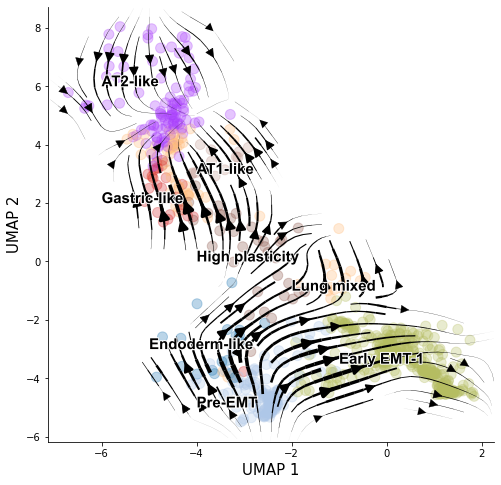

../_images/notebook_kp3726_comparison_39_0.png

../_images/notebook_kp3726_comparison_39_1.png

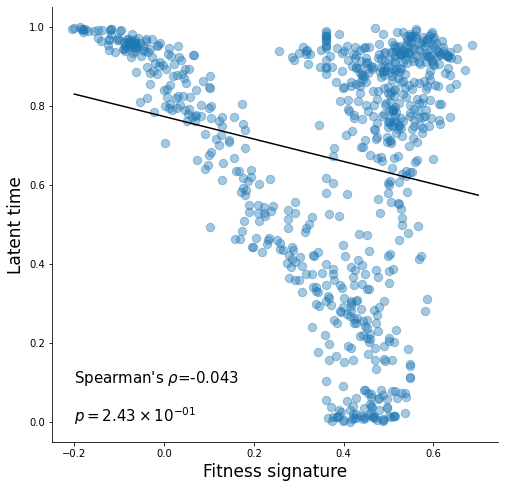

../_images/notebook_kp3726_comparison_39_2.png

[ ]:

[37]:

name = 'kp3726_deepvelo'
fig, ax = plt.subplots()
ax.scatter(adata.obsm['X_umap'][:,0], adata.obsm['X_umap'][:,1],
           c=c[adata.obs_names].apply(lambda x: adata_paper.uns['leiden_sub_colors'][x]),
           s=100, alpha=0.3)
ax = pv.ana_utils.velocity_plot(adata.obsm['X_umap'], adata_dv.obsm['velocity_umap'], ax, 'stream', radius=0.8, lw_coef=100, arrowsize=2)
ax.figure.set_size_inches(8,8)
ax.set_xlabel('UMAP 1', fontsize=15)
ax.set_ylabel('UMAP 2', fontsize=15)
# cbaxes = inset_axes(ax, width="3%", height="30%", loc='lower right')
# plt.colorbar(scatter, cax=cbaxes, orientation='vertical')
ax.spines['right'].set_visible(False)
ax.spines['top'].set_visible(False)
ax.text(-1, -3.5, 'Early EMT-1', fontsize=15,c='black',
       fontproperties=font_manager.FontProperties(fname='/data/public/font/arial/ARIALBD.TTF'),
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
ax.text(-4, -5, 'Pre-EMT', fontsize=15,c='black',
       fontproperties=font_manager.FontProperties(fname='/data/public/font/arial/ARIALBD.TTF'),
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
ax.text(-5, -3, 'Endoderm-like', fontsize=15,c='black',
       fontproperties=font_manager.FontProperties(fname='/data/public/font/arial/ARIALBD.TTF'),
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
ax.text(-4, 0, 'High plasticity', fontsize=15,c='black',
       fontproperties=font_manager.FontProperties(fname='/data/public/font/arial/ARIALBD.TTF'),
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
ax.text(-2, -1, 'Lung mixed', fontsize=15,c='black',
       fontproperties=font_manager.FontProperties(fname='/data/public/font/arial/ARIALBD.TTF'),
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
ax.text(-6, 2, 'Gastric-like', fontsize=15,c='black',
       fontproperties=font_manager.FontProperties(fname='/data/public/font/arial/ARIALBD.TTF'),
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
ax.text(-4, 3, 'AT1-like', fontsize=15,c='black',
       fontproperties=font_manager.FontProperties(fname='/data/public/font/arial/ARIALBD.TTF'),
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
ax.text(-6, 6, 'AT2-like', fontsize=15,c='black',
       fontproperties=font_manager.FontProperties(fname='/data/public/font/arial/ARIALBD.TTF'),
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
plt.savefig('/home/wangkun/modelcomp_figs/'+name+'.png', format='png')


fig, ax = plt.subplots()
scatter=ax.scatter(adata.obsm['X_umap'][:,0], adata.obsm['X_umap'][:,1],
           c=norm_time(adata_dv.obs['latent_time']), cmap='plasma',
           s=60)
ax.figure.set_size_inches(8,8)
ax.set_xlabel('UMAP 1', fontsize=15)
ax.set_ylabel('UMAP 2', fontsize=15)
# cbaxes = inset_axes(ax, width="3%", height="30%", loc='lower right')
# plt.colorbar(scatter, cax=cbaxes, orientation='vertical')
ax.spines['right'].set_visible(False)
ax.spines['top'].set_visible(False)
cbaxes = inset_axes(ax, width="3%", height="30%", loc='lower left')
plt.colorbar(scatter, cax=cbaxes, orientation='vertical')
ax.spines['right'].set_visible(False)
ax.spines['top'].set_visible(False)
# ax.set_ylim(-1.43,9)

plt.savefig('/home/wangkun/modelcomp_figs/'+name+'_lt.png', format='png')


from scipy.stats import spearmanr
sigscores = pd.read_csv("/data/liangzhen/wangk_DianYang_tumor/data_for_modulescore/fitness_signature_scores.tsv", sep='\t', index_col = 0)
kii = np.intersect1d(sigscores.index, adata_paper.obs_names)
adata_paper.obs['FitnessSignature'] = np.nan
adata_paper.obs.loc[kii, 'FitnessSignature'] = sigscores.loc[kii, 'FitnessSignature_NT']


x =adata_paper.obs['FitnessSignature'][[i.replace('x', '-1') for i in adata.obs_names]]
y = norm_time(np.array(adata_dv.obs['latent_time']))
x[np.isnan(x)] = np.mean(x[~np.isnan(x)])

a, b = np.polyfit(x, y, deg=1)
y_est = a * np.linspace(-0.2,0.7,60) + b

fig, ax = plt.subplots(figsize=(8, 8))
ax.scatter(x, y, alpha=0.4, s=70)
ax.plot(np.linspace(-0.2,0.7,60), y_est, '-', c='k')
ax.set_xlabel('Fitness signature', fontsize=17)
ax.set_ylabel('Latent time', fontsize=17)
# ax.text(50, 0.9, 'spearmanr={:.2g}\np_val={:.2g}'.format(*spearmanr(x, y)), fontsize=15)
rho, pval = spearmanr(x, y)
ax.text(-0.2, 0.9, r"Spearman's $\rho$={:.2g}".format(rho), fontsize=15)
ax.text(-0.2, 0.8, r'$p={}\times 10^{}$'.format(*r'{:.2e}'.format(pval).split('e')).replace('^', '^{').replace('$', '}$')[1:], fontsize=15)

ax.spines['right'].set_visible(False)
ax.spines['top'].set_visible(False)

plt.savefig('/home/wangkun/modelcomp_figs/'+name+'_cmp.png', format='png')

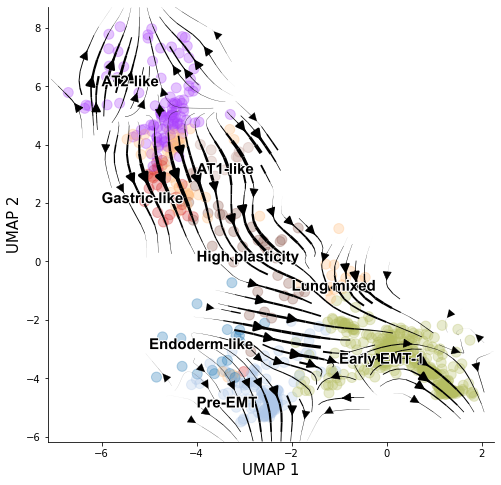

../_images/notebook_kp3726_comparison_41_0.png

../_images/notebook_kp3726_comparison_41_1.png

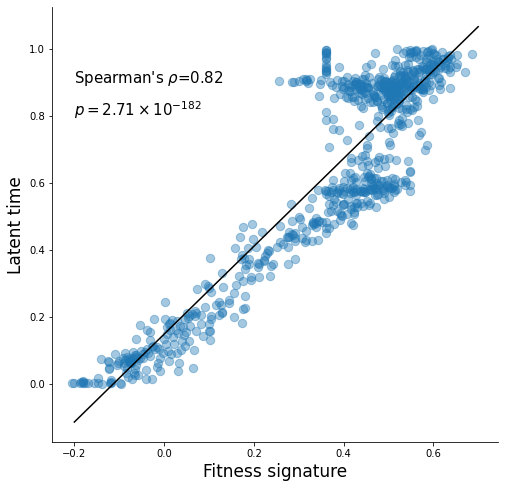

../_images/notebook_kp3726_comparison_41_2.png

[ ]:

[38]:

name = 'kp3726_unitvelo'
fig, ax = plt.subplots()
ax.scatter(adata.obsm['X_umap'][:,0], adata.obsm['X_umap'][:,1],
           c=c[adata.obs_names].apply(lambda x: adata_paper.uns['leiden_sub_colors'][x]),
           s=100, alpha=0.3)
ax = pv.ana_utils.velocity_plot(adata.obsm['X_umap'], adata_utv.obsm['velocity_umap'], ax, 'stream', radius=0.8, lw_coef=100, arrowsize=2)
ax.figure.set_size_inches(8,8)
ax.set_xlabel('UMAP 1', fontsize=15)
ax.set_ylabel('UMAP 2', fontsize=15)
# cbaxes = inset_axes(ax, width="3%", height="30%", loc='lower right')
# plt.colorbar(scatter, cax=cbaxes, orientation='vertical')
ax.spines['right'].set_visible(False)
ax.spines['top'].set_visible(False)
ax.text(-1, -3.5, 'Early EMT-1', fontsize=15,c='black',
       fontproperties=font_manager.FontProperties(fname='/data/public/font/arial/ARIALBD.TTF'),
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
ax.text(-4, -5, 'Pre-EMT', fontsize=15,c='black',
       fontproperties=font_manager.FontProperties(fname='/data/public/font/arial/ARIALBD.TTF'),
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
ax.text(-5, -3, 'Endoderm-like', fontsize=15,c='black',
       fontproperties=font_manager.FontProperties(fname='/data/public/font/arial/ARIALBD.TTF'),
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
ax.text(-4, 0, 'High plasticity', fontsize=15,c='black',
       fontproperties=font_manager.FontProperties(fname='/data/public/font/arial/ARIALBD.TTF'),
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
ax.text(-2, -1, 'Lung mixed', fontsize=15,c='black',
       fontproperties=font_manager.FontProperties(fname='/data/public/font/arial/ARIALBD.TTF'),
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
ax.text(-6, 2, 'Gastric-like', fontsize=15,c='black',
       fontproperties=font_manager.FontProperties(fname='/data/public/font/arial/ARIALBD.TTF'),
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
ax.text(-4, 3, 'AT1-like', fontsize=15,c='black',
       fontproperties=font_manager.FontProperties(fname='/data/public/font/arial/ARIALBD.TTF'),
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
ax.text(-6, 6, 'AT2-like', fontsize=15,c='black',
       fontproperties=font_manager.FontProperties(fname='/data/public/font/arial/ARIALBD.TTF'),
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
plt.savefig('/home/wangkun/modelcomp_figs/'+name+'.png', format='png')


fig, ax = plt.subplots()
scatter=ax.scatter(adata.obsm['X_umap'][:,0], adata.obsm['X_umap'][:,1],
           c=norm_time(adata_utv.obs['latent_time']), cmap='plasma',
           s=60)
ax.figure.set_size_inches(8,8)
ax.set_xlabel('UMAP 1', fontsize=15)
ax.set_ylabel('UMAP 2', fontsize=15)
# cbaxes = inset_axes(ax, width="3%", height="30%", loc='lower right')
# plt.colorbar(scatter, cax=cbaxes, orientation='vertical')
ax.spines['right'].set_visible(False)
ax.spines['top'].set_visible(False)
cbaxes = inset_axes(ax, width="3%", height="30%", loc='lower left')
plt.colorbar(scatter, cax=cbaxes, orientation='vertical')
ax.spines['right'].set_visible(False)
ax.spines['top'].set_visible(False)
# ax.set_ylim(-1.43,9)

plt.savefig('/home/wangkun/modelcomp_figs/'+name+'_lt.png', format='png')


from scipy.stats import spearmanr
sigscores = pd.read_csv("/data/liangzhen/wangk_DianYang_tumor/data_for_modulescore/fitness_signature_scores.tsv", sep='\t', index_col = 0)
kii = np.intersect1d(sigscores.index, adata_paper.obs_names)
adata_paper.obs['FitnessSignature'] = np.nan
adata_paper.obs.loc[kii, 'FitnessSignature'] = sigscores.loc[kii, 'FitnessSignature_NT']


x =adata_paper.obs['FitnessSignature'][[i.replace('x', '-1') for i in adata.obs_names]]
y = norm_time(np.array(adata_utv.obs['latent_time']))
x[np.isnan(x)] = np.mean(x[~np.isnan(x)])

a, b = np.polyfit(x, y, deg=1)
y_est = a * np.linspace(-0.2,0.7,60) + b

fig, ax = plt.subplots(figsize=(8, 8))
ax.scatter(x, y, alpha=0.4, s=70)
ax.plot(np.linspace(-0.2,0.7,60), y_est, '-', c='k')
ax.set_xlabel('Fitness signature', fontsize=17)
ax.set_ylabel('Latent time', fontsize=17)
# ax.text(50, 0.9, 'spearmanr={:.2g}\np_val={:.2g}'.format(*spearmanr(x, y)), fontsize=15)
rho, pval = spearmanr(x, y)
ax.text(-0.2, 0.9, r"Spearman's $\rho$={:.2g}".format(rho), fontsize=15)
ax.text(-0.2, 0.8, r'$p={}\times 10^{}$'.format(*r'{:.2e}'.format(pval).split('e')).replace('^', '^{').replace('$', '}$')[1:], fontsize=15)

ax.spines['right'].set_visible(False)
ax.spines['top'].set_visible(False)

plt.savefig('/home/wangkun/modelcomp_figs/'+name+'_cmp.png', format='png')

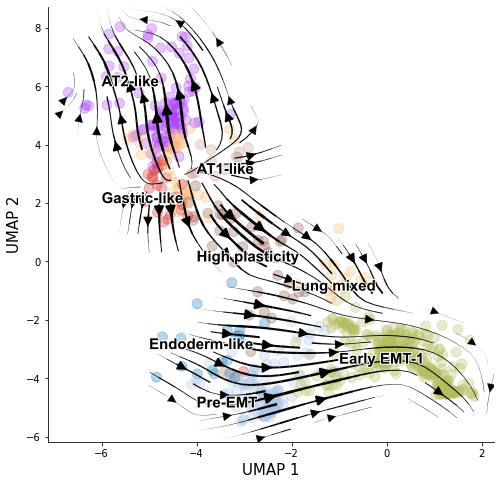

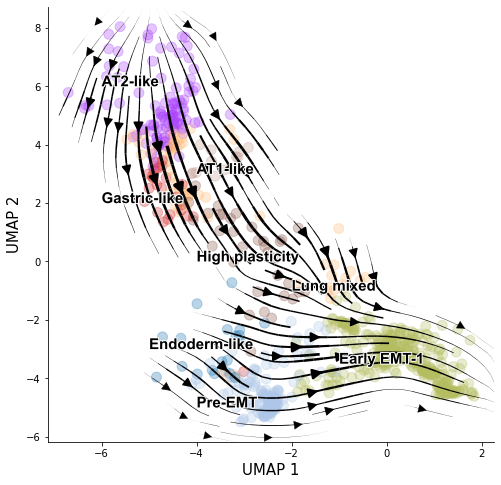

../_images/notebook_kp3726_comparison_43_0.png

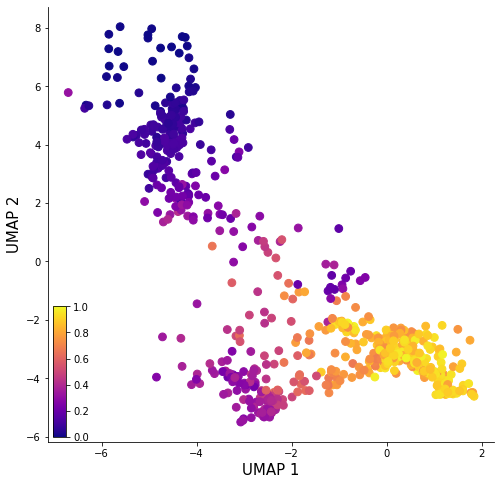

../_images/notebook_kp3726_comparison_43_1.png

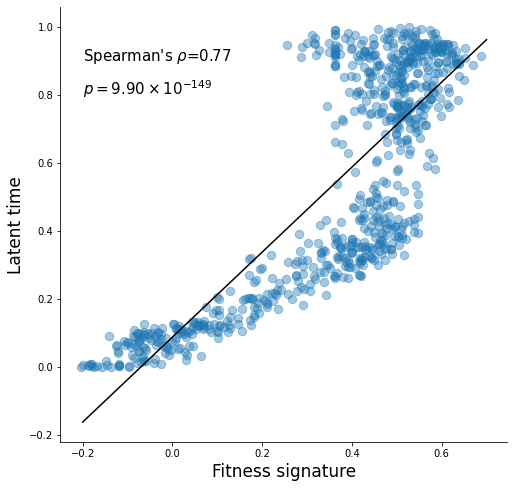

../_images/notebook_kp3726_comparison_43_2.png

[ ]:

[40]:

name = 'kp3726_velovae'
fig, ax = plt.subplots()
ax.scatter(adata.obsm['X_umap'][:,0], adata.obsm['X_umap'][:,1],
           c=c[adata.obs_names].apply(lambda x: adata_paper.uns['leiden_sub_colors'][x]),
           s=100, alpha=0.3)
ax = pv.ana_utils.velocity_plot(adata.obsm['X_umap'], adata_vv.obsm['fullvb_velocity_umap'], ax, 'stream', radius=0.8, lw_coef=100, arrowsize=2)
ax.figure.set_size_inches(8,8)
ax.set_xlabel('UMAP 1', fontsize=15)
ax.set_ylabel('UMAP 2', fontsize=15)
# cbaxes = inset_axes(ax, width="3%", height="30%", loc='lower right')
# plt.colorbar(scatter, cax=cbaxes, orientation='vertical')
ax.spines['right'].set_visible(False)
ax.spines['top'].set_visible(False)
ax.text(-1, -3.5, 'Early EMT-1', fontsize=15,c='black',
       fontproperties=font_manager.FontProperties(fname='/data/public/font/arial/ARIALBD.TTF'),
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
ax.text(-4, -5, 'Pre-EMT', fontsize=15,c='black',
       fontproperties=font_manager.FontProperties(fname='/data/public/font/arial/ARIALBD.TTF'),
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
ax.text(-5, -3, 'Endoderm-like', fontsize=15,c='black',
       fontproperties=font_manager.FontProperties(fname='/data/public/font/arial/ARIALBD.TTF'),
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
ax.text(-4, 0, 'High plasticity', fontsize=15,c='black',
       fontproperties=font_manager.FontProperties(fname='/data/public/font/arial/ARIALBD.TTF'),
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
ax.text(-2, -1, 'Lung mixed', fontsize=15,c='black',
       fontproperties=font_manager.FontProperties(fname='/data/public/font/arial/ARIALBD.TTF'),
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
ax.text(-6, 2, 'Gastric-like', fontsize=15,c='black',
       fontproperties=font_manager.FontProperties(fname='/data/public/font/arial/ARIALBD.TTF'),
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
ax.text(-4, 3, 'AT1-like', fontsize=15,c='black',
       fontproperties=font_manager.FontProperties(fname='/data/public/font/arial/ARIALBD.TTF'),
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
ax.text(-6, 6, 'AT2-like', fontsize=15,c='black',
       fontproperties=font_manager.FontProperties(fname='/data/public/font/arial/ARIALBD.TTF'),
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
plt.savefig('/home/wangkun/modelcomp_figs/'+name+'.png', format='png')


fig, ax = plt.subplots()
scatter=ax.scatter(adata.obsm['X_umap'][:,0], adata.obsm['X_umap'][:,1],
           c=norm_time(adata_vv.obs['fullvb_time']), cmap='plasma',
           s=60)
ax.figure.set_size_inches(8,8)
ax.set_xlabel('UMAP 1', fontsize=15)
ax.set_ylabel('UMAP 2', fontsize=15)
# cbaxes = inset_axes(ax, width="3%", height="30%", loc='lower right')
# plt.colorbar(scatter, cax=cbaxes, orientation='vertical')
ax.spines['right'].set_visible(False)
ax.spines['top'].set_visible(False)
cbaxes = inset_axes(ax, width="3%", height="30%", loc='lower left')
plt.colorbar(scatter, cax=cbaxes, orientation='vertical')
ax.spines['right'].set_visible(False)
ax.spines['top'].set_visible(False)
# ax.set_ylim(-1.43,9)

plt.savefig('/home/wangkun/modelcomp_figs/'+name+'_lt.png', format='png')


from scipy.stats import spearmanr
sigscores = pd.read_csv("/data/liangzhen/wangk_DianYang_tumor/data_for_modulescore/fitness_signature_scores.tsv", sep='\t', index_col = 0)
kii = np.intersect1d(sigscores.index, adata_paper.obs_names)
adata_paper.obs['FitnessSignature'] = np.nan
adata_paper.obs.loc[kii, 'FitnessSignature'] = sigscores.loc[kii, 'FitnessSignature_NT']


x =adata_paper.obs['FitnessSignature'][[i.replace('x', '-1') for i in adata.obs_names]]
y = norm_time(np.array(adata_vv.obs['fullvb_time']))
x[np.isnan(x)] = np.mean(x[~np.isnan(x)])

a, b = np.polyfit(x, y, deg=1)
y_est = a * np.linspace(-0.2,0.7,60) + b

fig, ax = plt.subplots(figsize=(8, 8))
ax.scatter(x, y, alpha=0.4, s=70)
ax.plot(np.linspace(-0.2,0.7,60), y_est, '-', c='k')
ax.set_xlabel('Fitness signature', fontsize=17)
ax.set_ylabel('Latent time', fontsize=17)
# ax.text(50, 0.9, 'spearmanr={:.2g}\np_val={:.2g}'.format(*spearmanr(x, y)), fontsize=15)
rho, pval = spearmanr(x, y)
ax.text(-0.2, 0.9, r"Spearman's $\rho$={:.2g}".format(rho), fontsize=15)
ax.text(-0.2, 0.8, r'$p={}\times 10^{}$'.format(*r'{:.2e}'.format(pval).split('e')).replace('^', '^{').replace('$', '}$')[1:], fontsize=15)

ax.spines['right'].set_visible(False)
ax.spines['top'].set_visible(False)

plt.savefig('/home/wangkun/modelcomp_figs/'+name+'_cmp.png', format='png')

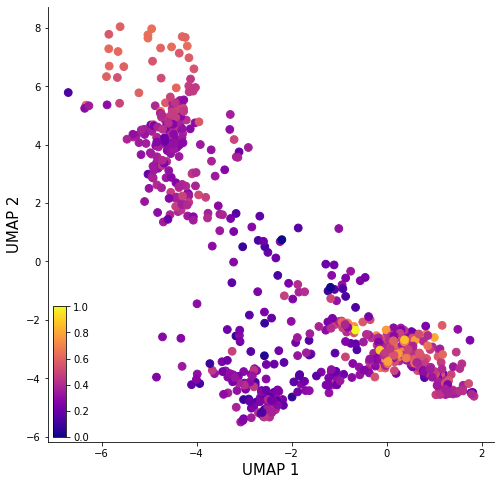

../_images/notebook_kp3726_comparison_45_0.png

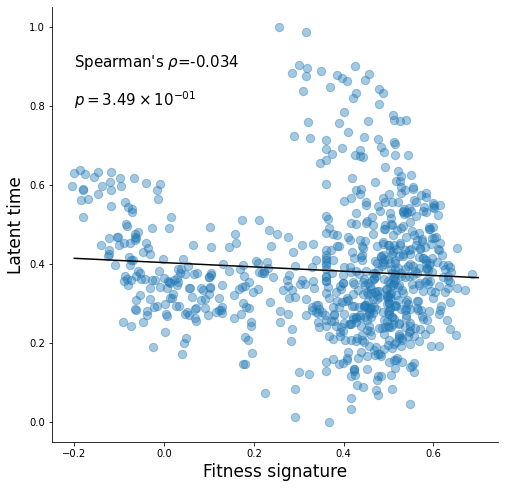

../_images/notebook_kp3726_comparison_45_1.png

../_images/notebook_kp3726_comparison_45_2.png

Cell Dancer

[ ]:

import celldancer.utilities as cdutil
cdutil.adata_to_df_with_embed(adata_select,
                              us_para=['Mu','Ms'],
                              cell_type_para='leiden_sub',
                              embed_para='X_umap',
                              save_path='cell_type_u_s_kp.csv')

[3]:

cell_type_u_s=pd.read_csv('./cell_type_u_s_kp.csv')

[ ]:

loss_df, cellDancer_df=cd.velocity(cell_type_u_s,\
                                   permutation_ratio=0.125,\
                                   n_jobs=8)

[5]:

cellDancer_df=cd.compute_cell_velocity(cellDancer_df=cellDancer_df, projection_neighbor_choice='gene', expression_scale='power10', projection_neighbor_size=10, speed_up=(100,100))

[25]:

dt = 0.001
t_total = {dt: 10000}
n_repeats = 10

# estimate pseudotime
cellDancer_df = cd.pseudo_time(cellDancer_df=cellDancer_df,
                                          grid=(30, 30),
                                          dt=dt,
                                          t_total=t_total[dt],
                                          n_repeats=n_repeats,
                                          speed_up=(60,60),
                                          n_paths = 5,
                                          psrng_seeds_diffusion=[i for i in range(n_repeats)],
                                          n_jobs=8)

Pseudo random number generator seeds are set to:  [0, 1, 2, 3, 4, 5, 6, 7, 8, 9]
There are 5 clusters.
[0 1 2 3 4]
There are cycle(s), forcing a break.
--- 49.95508551597595 seconds ---

[37]:

pseudotime = cellDancer_df[['cellID', 'pseudotime']].drop_duplicates('cellID')
pseudotime.index = pseudotime['cellID']

[ ]:

from celldancer.utilities import export_velocity_to_dynamo
adata = export_velocity_to_dynamo(cellDancer_df, adata_select)

[30]:

scv.tl.velocity_graph(adata)

computing velocities
    finished (0:00:00) --> added
    'velocity', velocity vectors for each individual cell (adata.layers)
computing velocity graph (using 1/64 cores)
    finished (0:00:01) --> added
    'velocity_graph', sparse matrix with cosine correlations (adata.uns)

[20]:

from matplotlib import font_manager
import matplotlib.patheffects as pe
c = adata_paper.obs['leiden_sub'].astype(int)
c.index = [i.replace('-1', 'x') for i in c.index]

[21]:

# name = 'kp3726_scvelo'
fig, ax = plt.subplots()
ax.scatter(adata.obsm['X_umap'][:,0], adata.obsm['X_umap'][:,1],
           c=c[adata.obs_names].apply(lambda x: adata_paper.uns['leiden_sub_colors'][x]),
           s=100, alpha=0.3)
ax = pv.ana_utils.velocity_plot(adata.obsm['X_umap'], adata.obsm['velocity_umap'], ax, 'stream', radius=0.8, lw_coef=100, arrowsize=2)
ax.figure.set_size_inches(8,8)
ax.set_xlabel('UMAP 1', fontsize=15)
ax.set_ylabel('UMAP 2', fontsize=15)
# cbaxes = inset_axes(ax, width="3%", height="30%", loc='lower right')
# plt.colorbar(scatter, cax=cbaxes, orientation='vertical')
ax.spines['right'].set_visible(False)
ax.spines['top'].set_visible(False)
ax.text(-1, -3.5, 'Early EMT-1', fontsize=15,c='black',
       fontproperties=font_manager.FontProperties(fname='/data/public/font/arial/ARIALBD.TTF'),
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
ax.text(-4, -5, 'Pre-EMT', fontsize=15,c='black',
       fontproperties=font_manager.FontProperties(fname='/data/public/font/arial/ARIALBD.TTF'),
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
ax.text(-5, -3, 'Endoderm-like', fontsize=15,c='black',
       fontproperties=font_manager.FontProperties(fname='/data/public/font/arial/ARIALBD.TTF'),
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
ax.text(-4, 0, 'High plasticity', fontsize=15,c='black',
       fontproperties=font_manager.FontProperties(fname='/data/public/font/arial/ARIALBD.TTF'),
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
ax.text(-2, -1, 'Lung mixed', fontsize=15,c='black',
       fontproperties=font_manager.FontProperties(fname='/data/public/font/arial/ARIALBD.TTF'),
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
ax.text(-6, 2, 'Gastric-like', fontsize=15,c='black',
       fontproperties=font_manager.FontProperties(fname='/data/public/font/arial/ARIALBD.TTF'),
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
ax.text(-4, 3, 'AT1-like', fontsize=15,c='black',
       fontproperties=font_manager.FontProperties(fname='/data/public/font/arial/ARIALBD.TTF'),
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])
ax.text(-6, 6, 'AT2-like', fontsize=15,c='black',
       fontproperties=font_manager.FontProperties(fname='/data/public/font/arial/ARIALBD.TTF'),
        path_effects=[pe.withStroke(linewidth=2, foreground="white")])

[21]:

Text(-6, 6, 'AT2-like')

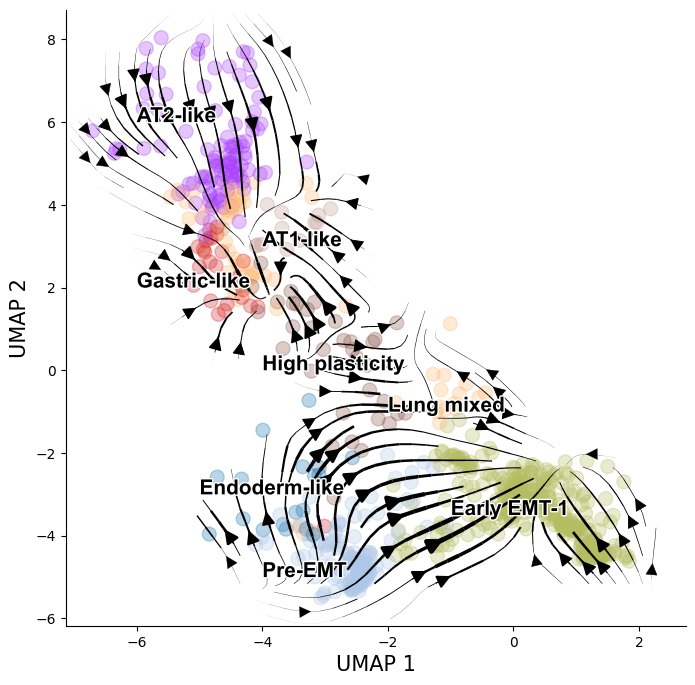

../_images/notebook_kp3726_comparison_56_1.png

[41]:

fig, ax = plt.subplots()
scatter=ax.scatter(adata.obsm['X_umap'][:,0], adata.obsm['X_umap'][:,1],
           c=pseudotime.loc[adata.obs_names]['pseudotime'], cmap='plasma',
           s=60)
ax.figure.set_size_inches(8,8)
ax.set_xlabel('UMAP 1', fontsize=15)
ax.set_ylabel('UMAP 2', fontsize=15)
# cbaxes = inset_axes(ax, width="3%", height="30%", loc='lower right')
# plt.colorbar(scatter, cax=cbaxes, orientation='vertical')
ax.spines['right'].set_visible(False)
ax.spines['top'].set_visible(False)
cbaxes = inset_axes(ax, width="3%", height="30%", loc='lower left')
plt.colorbar(scatter, cax=cbaxes, orientation='vertical')
ax.spines['right'].set_visible(False)
ax.spines['top'].set_visible(False)

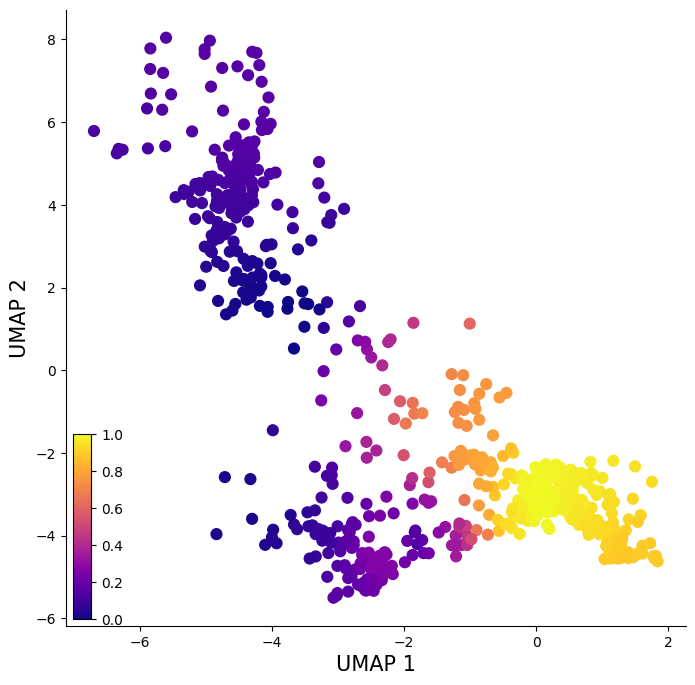

../_images/notebook_kp3726_comparison_57_0.png

[44]:

from scipy.stats import spearmanr
sigscores = pd.read_csv("/data/liangzhen/wangk_DianYang_tumor/data_for_modulescore/fitness_signature_scores.tsv", sep='\t', index_col = 0)
kii = np.intersect1d(sigscores.index, adata_paper.obs_names)
adata_paper.obs['FitnessSignature'] = np.nan
adata_paper.obs.loc[kii, 'FitnessSignature'] = sigscores.loc[kii, 'FitnessSignature_NT']


x =adata_paper.obs['FitnessSignature'][[i.replace('x', '-1') for i in adata.obs_names]]
y = pseudotime.loc[adata.obs_names]['pseudotime']
x[np.isnan(x)] = np.mean(x[~np.isnan(x)])

a, b = np.polyfit(x, y, deg=1)
y_est = a * np.linspace(-0.2,0.7,60) + b

fig, ax = plt.subplots(figsize=(8, 8))
ax.scatter(x, y, alpha=0.4, s=70)
ax.plot(np.linspace(-0.2,0.7,60), y_est, '-', c='k')
ax.set_xlabel('Fitness signature', fontsize=17)
ax.set_ylabel('CellDancer pseudotime', fontsize=17)
# ax.text(50, 0.9, 'spearmanr={:.2g}\np_val={:.2g}'.format(*spearmanr(x, y)), fontsize=15)
rho, pval = spearmanr(x, y)
ax.text(-0.2, 0.95, r"Spearman's $\rho$={:.2g}".format(rho), fontsize=15)
ax.text(-0.2, 0.85, r'$p={}\times 10^{}$'.format(*r'{:.2e}'.format(pval).split('e')).replace('^', '^{').replace('$', '}$')[1:], fontsize=15)

ax.spines['right'].set_visible(False)
ax.spines['top'].set_visible(False)

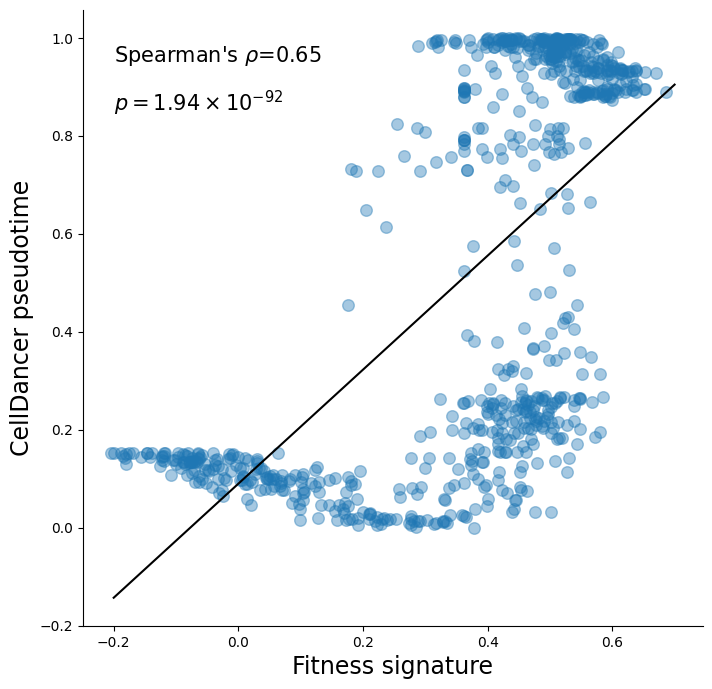

../_images/notebook_kp3726_comparison_58_0.png

[ ]:

[ ]:
